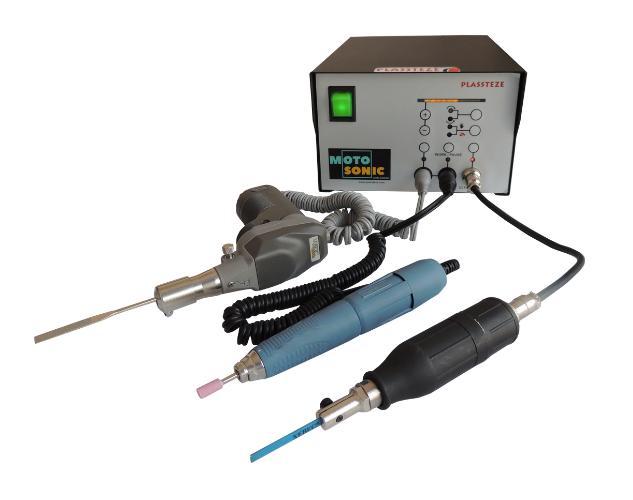

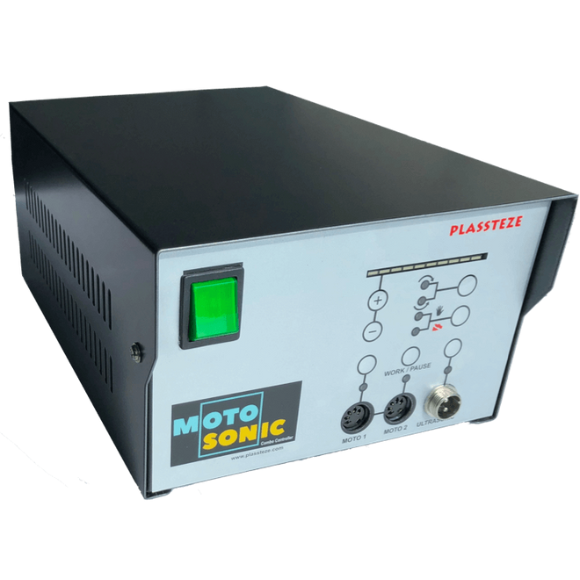

Motosonic Ultrasonic Polishing Machine

A versatile polishing machine having Ultrasonic polishing function to polish ribs, difficult to reach areas, intricate shapes and connectable Micromotor based rotary and reciprocating handpieces for precise polishing of moulds & dies. Developed in India after years of R&D, Motosonic offers real value for money

SPECIAL FEATURES:

  • One controller with two polishing operations
  • Safety circuit to preclude the probability of over-heating or overloading.
  • Possible to use in clockwise and counter clockwise direction for micro-motor handpiece.
  • A compact & light weighted handpiece ergonomically designed to enhance the operational efficiency.
  • Applications include the finishing of plastic moulds, diecasting dies, ceramic, nonferrous and precious metal. Ideal for deburring, polishing and removing EDM scales

Technical Specifications:

  • Input: AC220V 50/60Hz 30 VA
  • Output: Ultrasonic AC 6~60V, 0.5A, DC 3~30V, 0.5A
  • Frequency: 22.6 kHz
  • Stroke: 45µm
  • Dimensions:
    • Controller: W94 × H130 × D283mm
    • Rotary H/P: 30 × 155mm
    • Ultrasonic H/P: 30 × 155mm
  • Weight:
    • Controller: 4.5 kg
    • Rotary Handpiece: 265 gm
    • U/S Handpiece: 200 gm

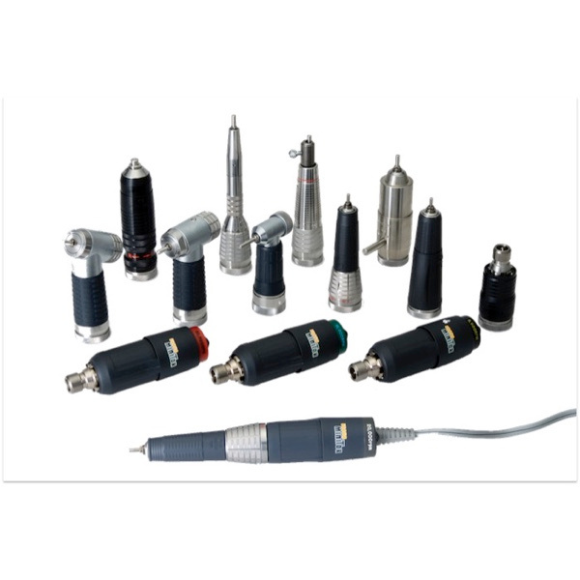

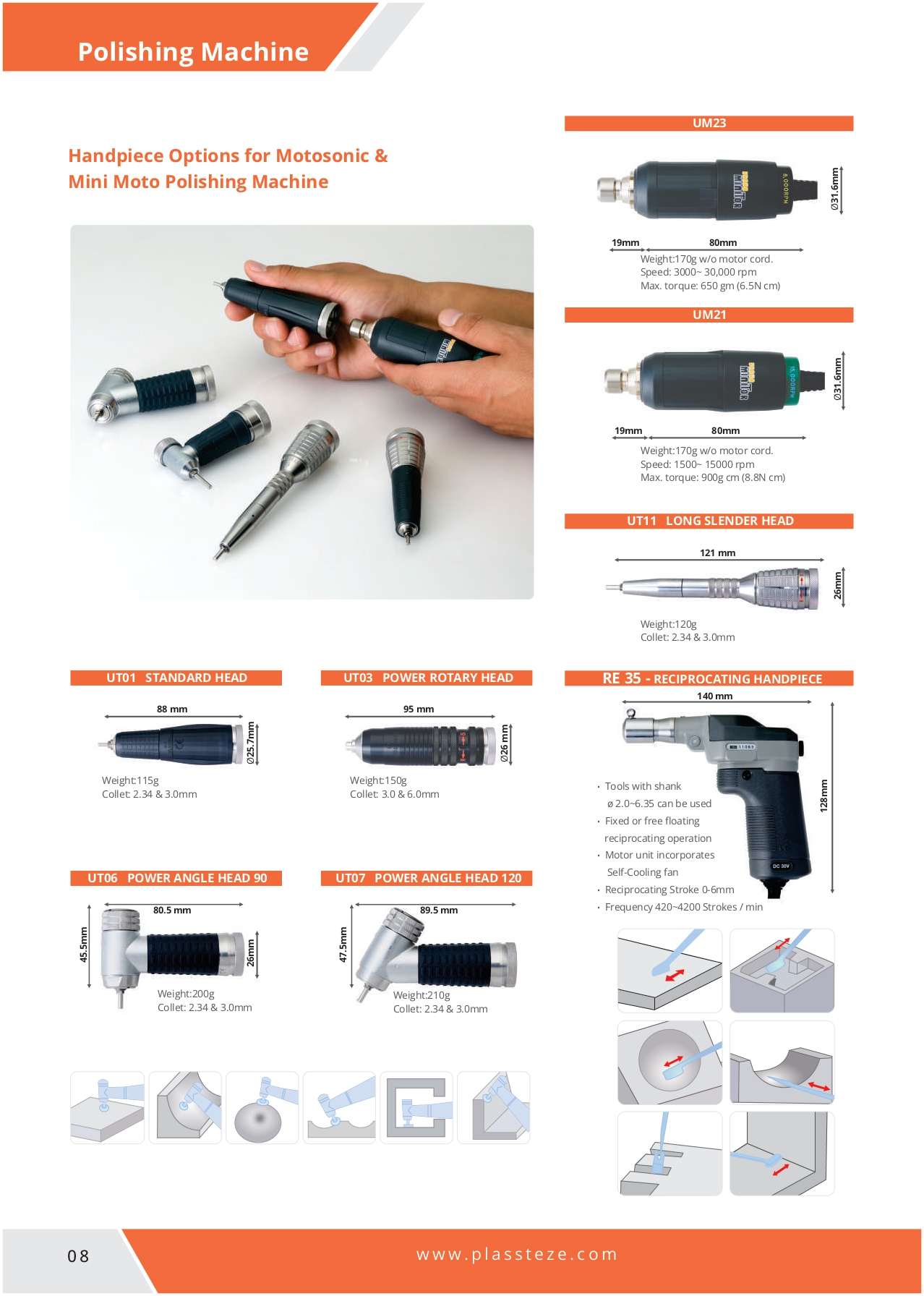

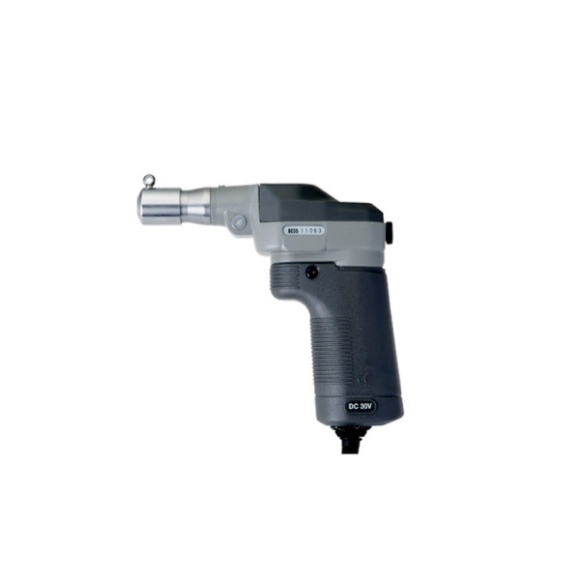

HANDPIECE OPTIONS

NIL
