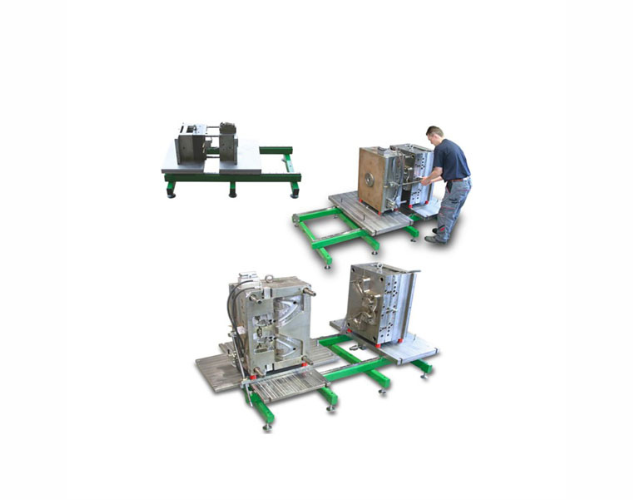

Mould Service Table

This new generation of mold service table is specifically designed to quickly and safely open molds.

Die / Mould opening / assembly Table is a unique device intended for opening and assembly of mould in very short times. It is necessary to use hoisting equipment for manipulation of the device.

SPECIFICATIONS:

Specification Details
Model PFM 3000
Max. Load (Weight of Mould) 3000 kg
Total Length (mm) 1210
Total Width (mm) 710
Work Area Each Table (mm) 370 x 595
Weight of Device (Kg) 250

Construction of the device is made of steel and consist of main parts:

  • Base Frame – The base of the device, equipped with leveling pads.

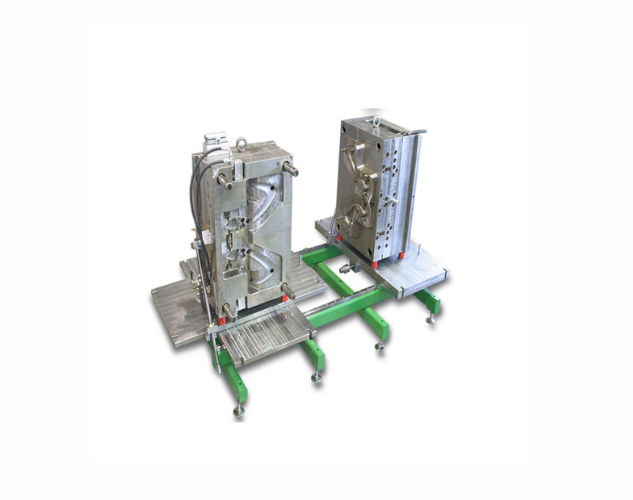

  • Work Table – Intended for loading the mould, opening the mould, and rotating the mould. One Work Table is static, while the second Work Table is movable on LM Guides. The movable Work Table can be stopped by a brake. Both Work Tables are equipped with Locating Pins to fix them from rotating.
