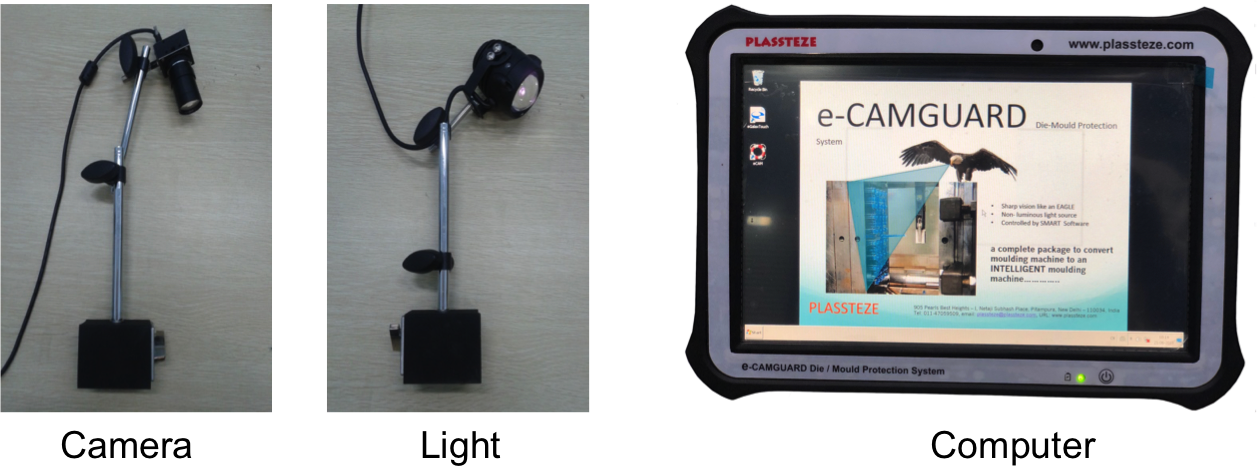

E-Camguard Die and Mould Protection System

E-CAMGUARD detects:

• Any missing Part (all cavities filled)
• Parts not fully ejected
• Improper movement od Slide Cores
• Improper retraction of Ejectors
• Inserts placed correctly before injection
• Abnormal flashes occurred (subjective)
• Short filling of parts (subjective)

Features & Benefits:

• Supports up to 4 cameras
• Shoot and compute in real time
• Touch Screen Display - User Friendly

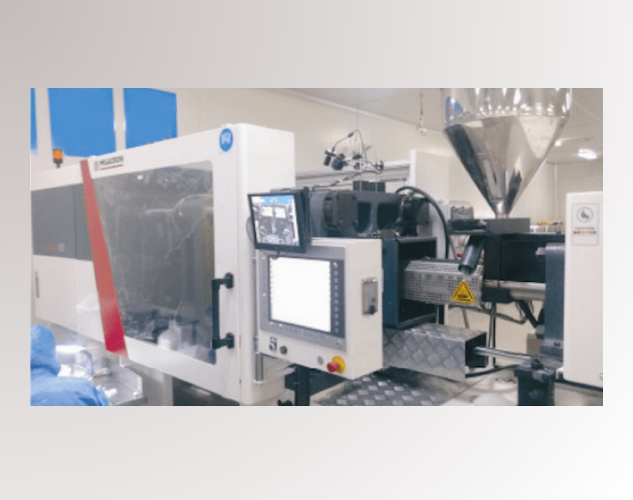

• The system can be interlocked with any Moulding Machine
• High pixel industrial camera - resolution up to 1600 x 1200
• Non-luminous Infrared Light source for better monitoring results
• Interlocked with Moulding Machine - stop Ejection and/or mould closure immediately upon detecting any mal-functioning of mould

Applications:

• Mobile phone accessories
• Automotive parts
• Medical parts
• Electrical connectors, switchgear, appliances, switches and relays
• Caps, closures and other packaging products
• Irrigation products

Specifications:

Specification	Details
Model	eCAMGUARD
Resolution	1600 x 1200 pixels
Image Capturing Time	0.03 seconds
Display	10.4 inch SVGA Colour LCD (Touch Panel)
Synchronic Input Signal	No Voltage Contact Signal
Interlock Output Signal	No Voltage Contact Signal
Rejection Circuit	Standard
2 Cameras Monitoring Function	Standard
Input Power	DC12V
Ambient Temperature	0 ~ 45 degrees
Ambient Humidity	Relative Humidity 85% Max (w/o condensation)
