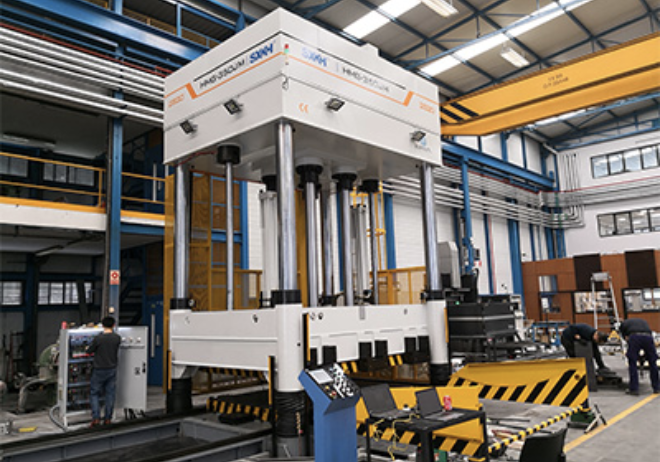

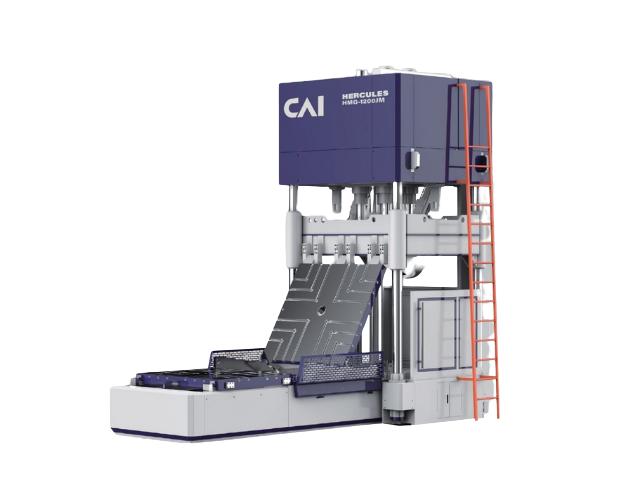

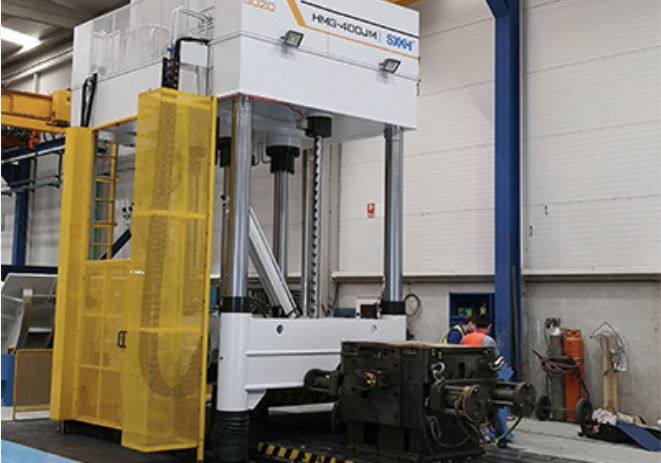

A large die spotting press for verifying the precise contact surfaces of two-part molds in the automotive and aerospace industries.
A large die spotting press for verifying the precise contact surfaces of two-part molds in the automotive and aerospace industries.

Die Spotting Press

  • Robust Four Column Design
    for stability, durability & accuracy
  • Powerful Four Hydraulic Cylinders
    for uniform delivery of force distribution for secure clamping
  • One Touch Operation
    for simplifying trials of Hydraulic Slides, Auxiliary Cylinders & Ejectors
  • High Clamping Force
    for minimising errors & enhancing safety
  • Outstanding Precision
    for flawless die matching & reducing rework
  • 180 degree Tilting Upper Platen
    for ensuring effortless mold correction
  • Parallelism Measuring Function
    for perfect alignment, preventing defects & optimizing die performance

Say No To

  • Hazardous Handling -No need for cranes or forklifts
  • Costly Spotting -Avoid using injection molding machines
  • High Expenses - Cut operating & maintenance costs
A large die spotting press for verifying the precise contact surfaces of two-part molds in the automotive and aerospace industries.
A large die spotting press for verifying the precise contact surfaces of two-part molds in the automotive and aerospace industries.

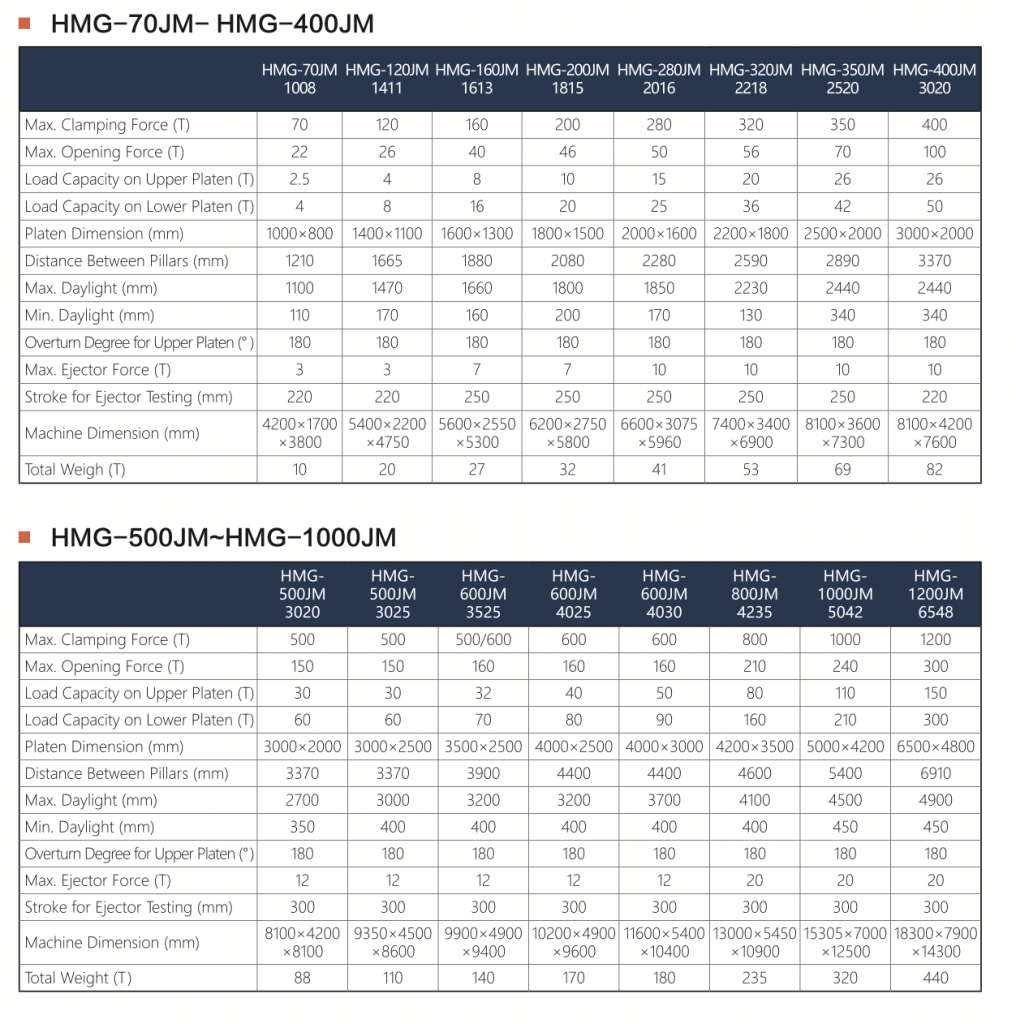

SPECIFICATIONS:

HMG-70JM-HMG-400JM

A large die spotting press for verifying the precise contact surfaces of two-part molds in the automotive and aerospace industries.

HMG-500JM~HMG-1000JM

A large die spotting press for verifying the precise contact surfaces of two-part molds in the automotive and aerospace industries.

Rotary Table

Allows rotation from 0° to 120° to 240° or 0° to 180°, ideal for two-color & three-color mold tryouts. Optional electric permanent magnet chuck enhances precision and efficiency.

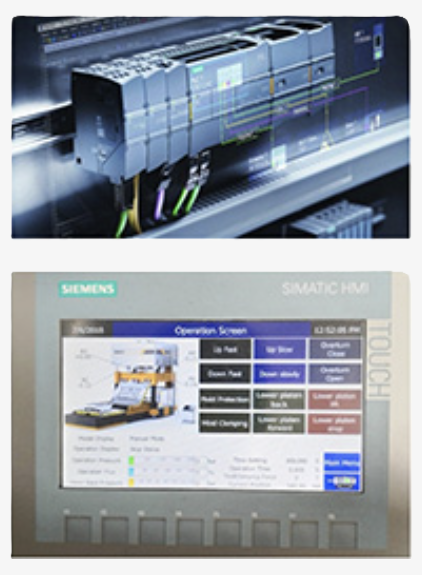

Siemens PLC System

Advanced S7-1200 PLC for precise control, remote monitoring, parameter saving, and mold database management.

A large die spotting press for verifying the precise contact surfaces of two-part molds in the automotive and aerospace industries.

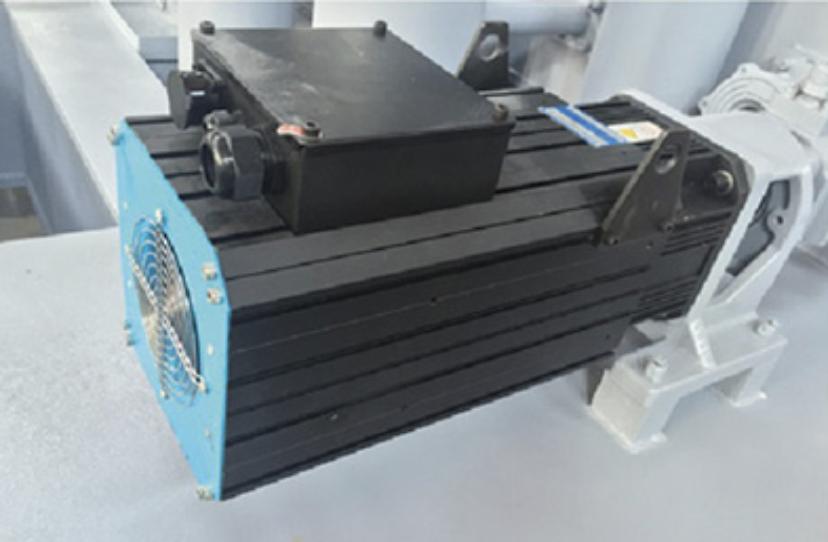

Hydraulic Servo System

Saves 60% energy, ensures stable holding force, and enhances precision & efficiency in die spotting.

A large die spotting press for verifying the precise contact surfaces of two-part molds in the automotive and aerospace industries.
