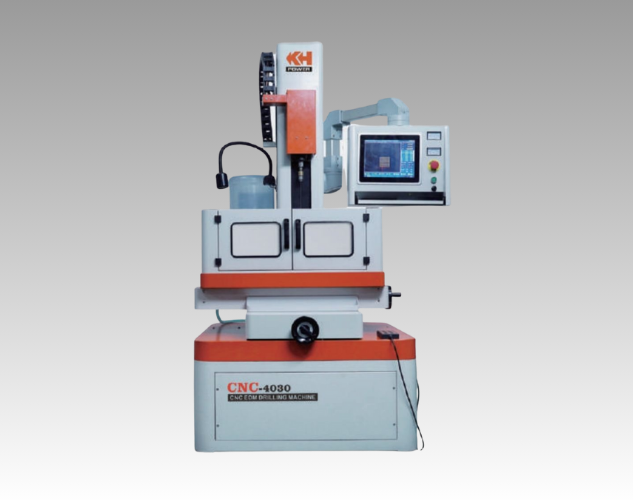

A CNC EDM drill machine for precision drilling of small, deep holes in hard metals and alloys

EDM Drill Machine

EDM Drill Machines are specialized tools engineered for high-accuracy drilling in hard and conductive materials. Using an electrically charged electrode, these machines erode material without physical contact—delivering clean, precise holes with minimal wear and exceptional repeatability.

Key Features

  • Data Logging & Monitoring: Real-time process tracking for enhanced control
  • Fine-Tuning Adjustments: Precision settings for depth, size, and position
  • Low Tool Wear: Non-contact method extends tool life
  • Efficient Cooling System: Maintains performance during long operations

Applications

Perfect for industries where precision is critical, including:

  • Aerospace
  • Automotive
  • Medical Device Manufacturing
  • Tool & Die Making

SPECIFICATIONS:

ITEM UNIT CNC4030 CNC5040
Working Table Size mm 400×600 440×630
Travel of Working Table mm 300×400 400×500
Electrode Diameter mm Φ0.2–Φ3.0 Φ0.2–Φ3.0
