UG-500/Silent Type

• High-torque, quiet-running and well balanced
• Ideal for precision grinding and finishing work
• Replaceable collet chuck: 3.0mm is standard, 2.34mm as an option
• Speed: 60,000 rpm
• Weight: 110gm
• Dimensions: 20 x 160L (mm)

UG-400/Economic Type

• Reliable quality and competitive price
• Air tools
• Fixed type collet chuck: 3.0mm
• Speed: 60,000 rpm
• Weight: 130gm
• Dimensions: 17 x 159L (mm)

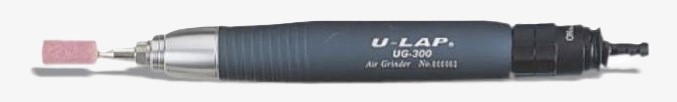

UG-300 Dual Collet Type

• High-torque, heavy duty, general purpose applicable for deburring, chamfering, milling and finishing the welded surfaces etc. Air tools
• Dual collet chuck: 3.0mm/ 6.0mm
• Speed: 35,000 rpm
• Weight: 170gm
• Dimensions: 22 x 180L (mm)

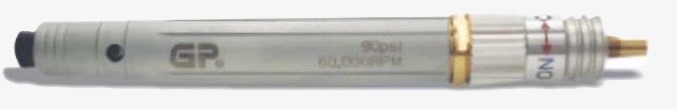

GP-260 Precision Type

• High-torque, quiet-running and well balanced
• Air tools
• Ideal for precision grinding and finishing work
• Fixed type collet chuck: 3.0mm
• Speed: 60,000 rpm
• Weight: 180gm
• Dimensions: 17.5 x 142L (mm)

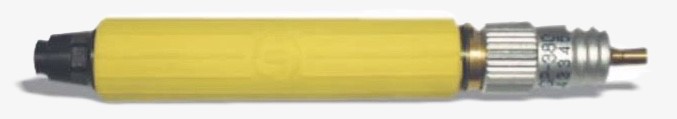

GP-380 Precision Type

• High-torque, quiet-running and well balanced
• Air tools
• Ideal for precision grinding and finishing work
• Fixed type collet chuck: 3.0mm
• Speed: 60,000 rpm
• Weight: 180gm
• Dimensions: 17.5 x 142L (mm)

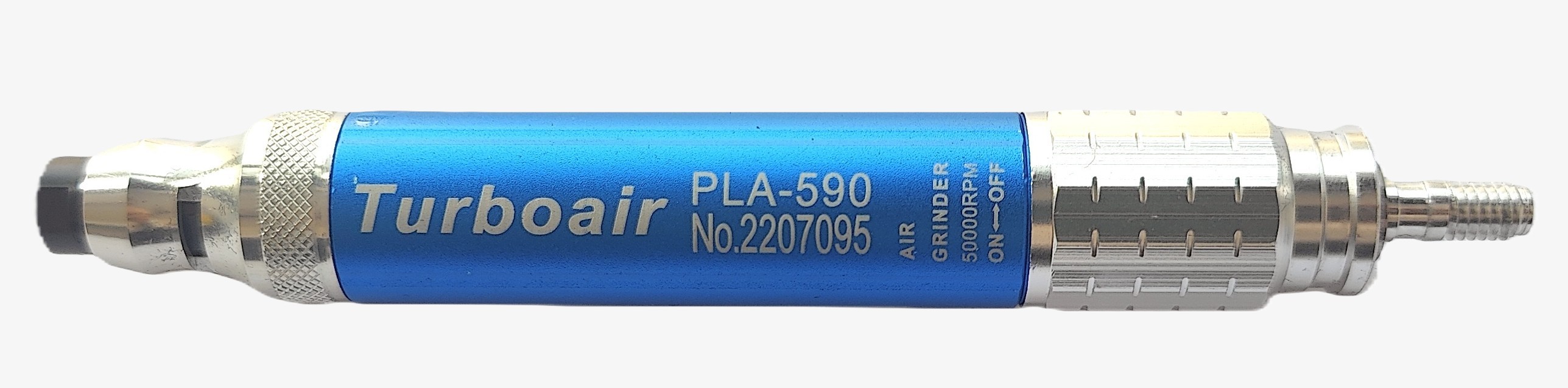

PLA 590 Econ Type

High Torque, general purpose applicable for deburring, chemfering , milling, and finishing the welded surface

• Speed: 50,000 RPM
• Weight: 110gms
• Dual collet chuck D3mm & D2.4mm
• Dimension: D19mm x L150mm
• Rear Air exhaust Type

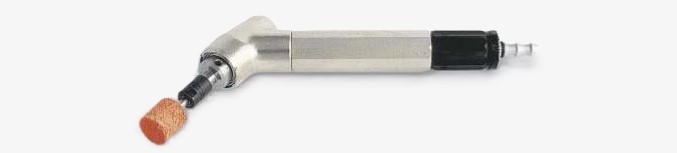

MAG-121N/Silent Type

• 135-degree high-speed angle grinder
• Collet chuck: 3.0mm
• Speed: 52,500 rpm
• Weight: 140gm

AG-45/Angle Surface Grinder

• 45-degree angle surface grinder
• Air Tools
• M7 screw shaft for mounting abrasive cup wheels and abrasive paper disc
• Ideal for surface grinding, chamfering, deburring and finishing welded surfaces etc.
• Speed: 23,500 rpm
• Weight: 180 g
• Dimensions: 17 x 153L x 50H (mm)

AG-90/Angle Surface Grinder

• 90-degree angle surface grinder
• M7 screw shaft for mounting abrasive cup wheels and abrasive paper disc
• Ideal for surface grinding, chamfering, deburring and finishing welded surfaces etc.
• Speed: 23,500 rpm
• Weight: 170 g
• Dimensions: 17 x 140L x 39H (mm)

UTR-30 Turbo Air Lappers

• Driven by turbine air motor
• Low noise, low vibration and durable tool life
• UTR-30 suits intricate area lapping
• Stroke: 0.3mm
• Speed: 30,000 spm
• Weight: 220g
• Dimensions: 28 x 200mm

UTR-70 Turbo Air Lappers

• Driven by turbine air motor
• Low noise, low vibration and durable tool life
• Air Tools
• UTR-70 suits general purpose polishing and finishing process of mould and die
• Stroke: 0.7mm
• Speed: 28,000 spm
• Weight: 220g
• Dimensions: 28 x 200mm

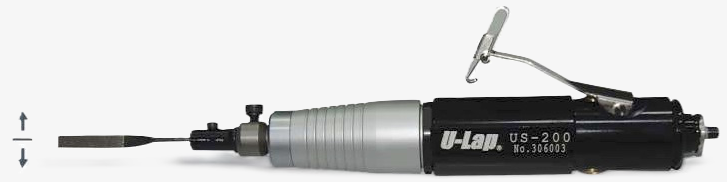

US-200 Swing Air Lappers

• Side to side stroke
• Air Tools
• Bigger swing stroke suit for lapping bigger surface and excellent for deburring or chamfering works of die casting parts
• Stroke: 2.0 mm
• Speed: 16,000 spm
• Weight: 520g
• Dimensions: 34 x 205mm

FPD/R Reciprocating Handpiece

• Stroke Length: 0-6 mm (recommended 0.5-3 mm)
• Speed: Maximum 8000 rpm (recommended 5000-7000)
• Weight: 750 gms
• Air Pressure: 4 Bar (57 psi)
• Air Consumption: Approx. 65 LPM at 8000 rpm

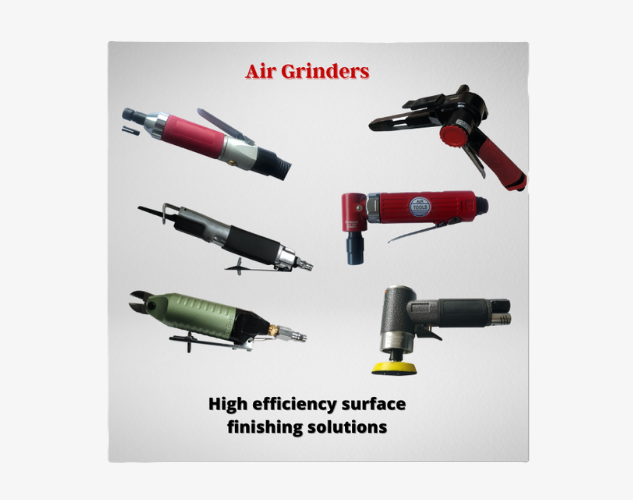

HIGH-EFFICIENCY SURFACE FINISHING SOLUTIONS

DG32M Air Grinder

• Speed: 18000 rpm
• Weight: 682 gms
• Collet: 6 mm
• Air inlet: 1/4" BSP

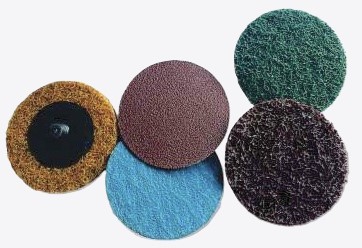

Compatible Abrasives

• Flap Wheels
• Abrasive Mounted Points
• Air tools
• Felt Bobs
• Felt Flap Wheels

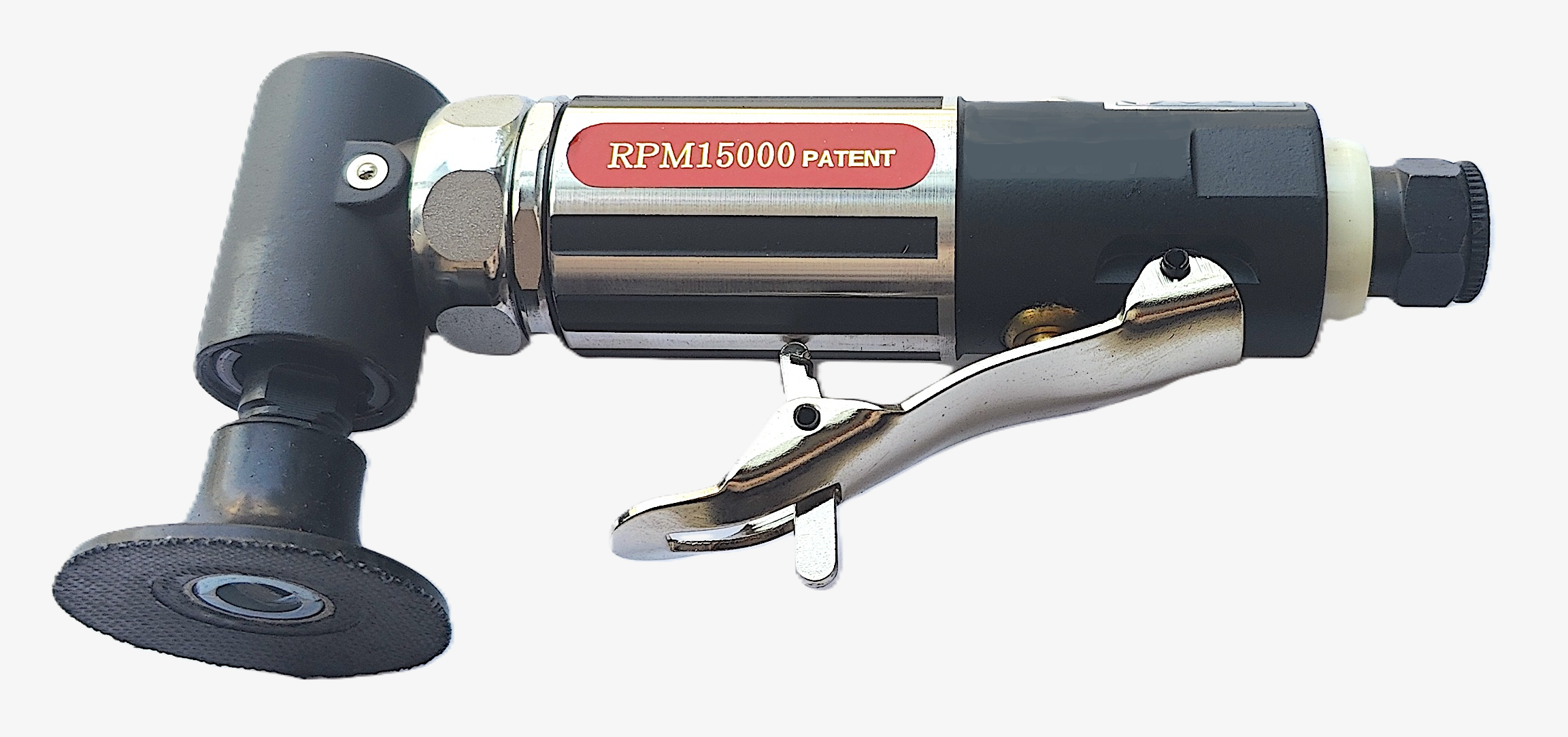

DG37 Air Sender 2"

• Speed: 15000 rpm
• Weight: 478 gms
• Air inlet: 1/4" BSP
• Options: 3" pad available on request

Compatible Abrasives

• 2" Emery Disc (ALOX/ZIRCON)
• 2" Non Woven Disc
• 3" Discs available on request

New ECON Grinders

PLA 468 ECON Air Grinder

• Speed: 30000 RPM
• Weight: 750 gms
• Collet: 3 & 6 mm
• Size: 33*180 mm

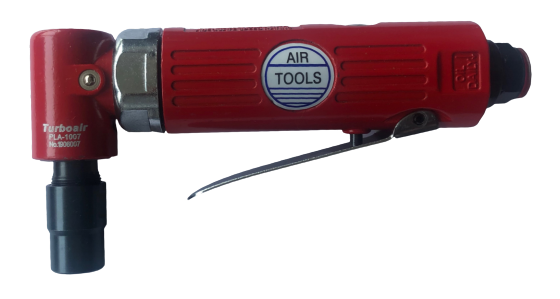

PLA1007 ECON 90 Deg Air Grinder

• Speed: 20000 RPM
• Weight: 480 gms
• Collet: 3 & 6 mm
• Size: 34*160 mm

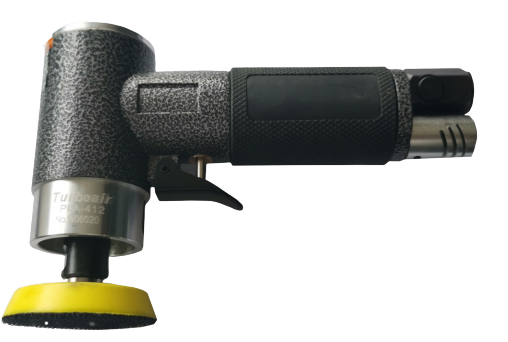

Turboair PLA 412 “ ECON 2" Sander

• Speed: 15000 RPM
• Weight: 680 gms
• Holder: 2 Velcro Sander Pad
• Air Pressure: 5 Kg/cm2

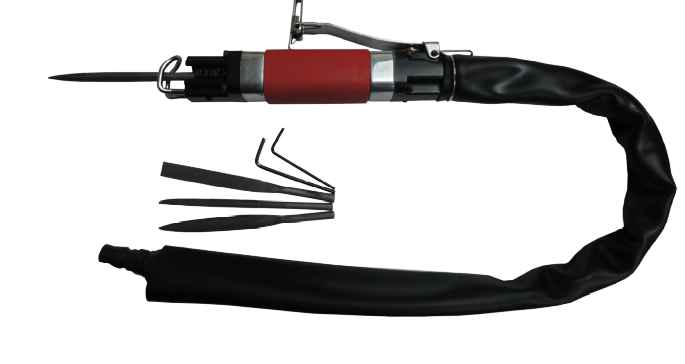

PLA 476 ECON Air Filter

• Speed: 5000 SPM
• Weight: 930 gms
• Collet: 6 mm
• Stroke: 10 mm

PLA 205 ECON Air Filter

• Speed: 3400 SPM
• Weight: 520 gms
• Collet: 6 mm
• Stroke: 5 mm

PLA 472 ECON Air Filter

• Speed: 3700 SPM
• Weight: 900 gms
• Collet: 6.35 mm
• Stroke: 9 mm
• Air Consumption: 1.4 CFM

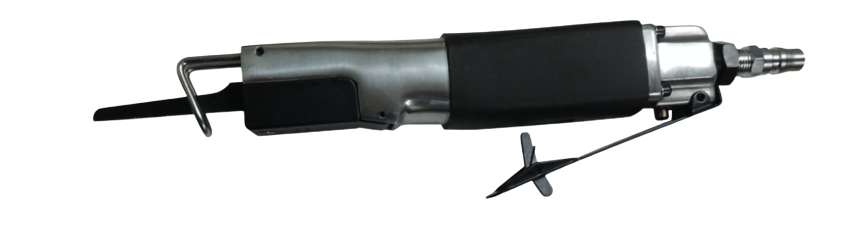

PLA 640 Air Saw

• Speed: 2000 SPM
• Weight: 540 gms
• Stroke: 10 mm
• Air Pressure: 6.5 Kg/cm2

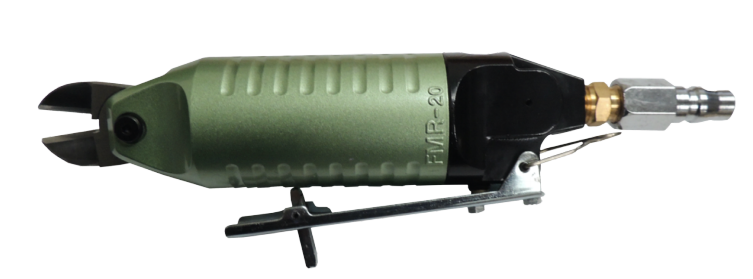

FMR 20 ECON Air Nipper

• Size: 45X155 mm
• Weight: 378 gms
• Air Pressure: 6 Kg/cm2

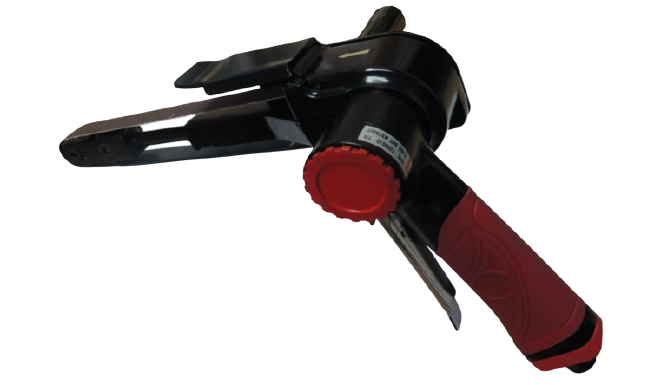

PLA 471 Belt Sander

• Speed: 16000 RPM
• Weight: 1150 gms
• Belt Size: 20*520 mm
• Air Pressure: 6 Kg/cm2

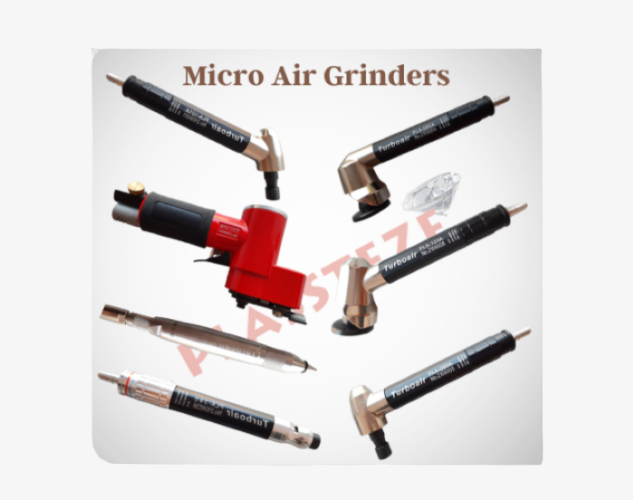

Micro Air Grinders

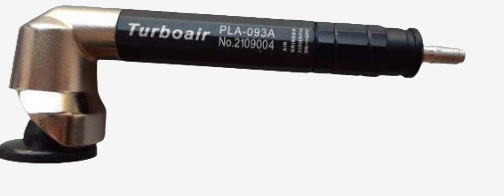

PLA 093A – 90 Deg Flat Grinding Type Wheel

• Size: 30MM
• Speed: 23500RPM
• Head: 90 Deg

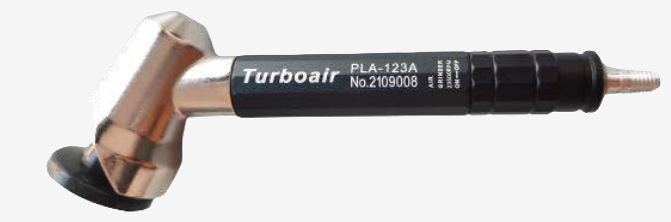

PLA 123A – 120 Deg Flat Grinding Type

• Size: 30MM
• Speed: 23500RPM
• Head: 120 Deg

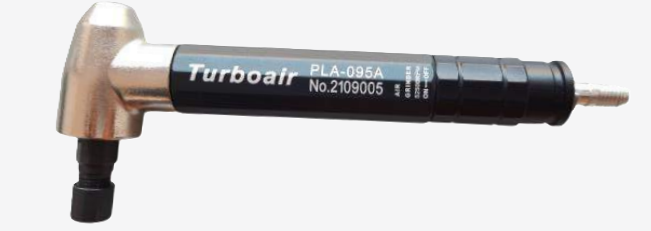

PLA 095 – 95 Deg Air Grinder

• Size: 3 mm
• Collet Speed: 52500 rpm
• Head: 95 Deg

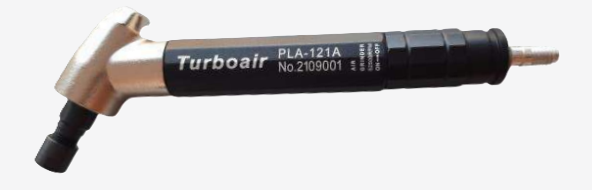

PLA 121A – 120 Deg Air Grinder

• Size: 3.0 mm
• Collet Speed: 52500 RPM
• Head: 120 Deg

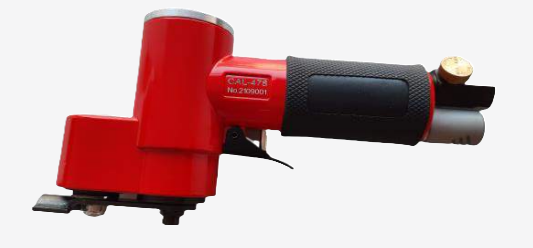

PLA 478A – Reciprocating Sander Machine

• Speed: 13000 RPM
• Deviation: 3mm
• Total length: 200 mm
• Weight: 0.83 kg

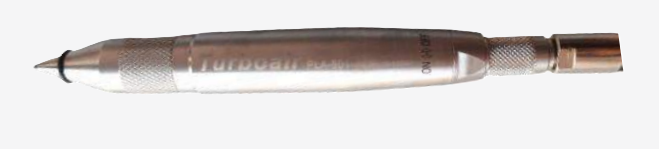

PLA – 501B Marking Tool

• Tip Size: 1.5mm
• Size: 155mm
• Speed: 3800spm
• Weight: 220g

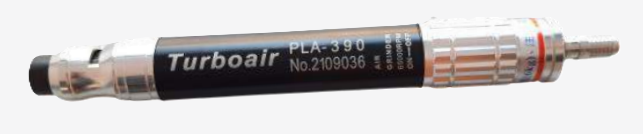

PLA – 390 Air Grinder

• Collet Size: 2.35/3.0mm
• Size: 15.8 * 140 mm
• Speed: 65000 RPM
• Weight: 140g
